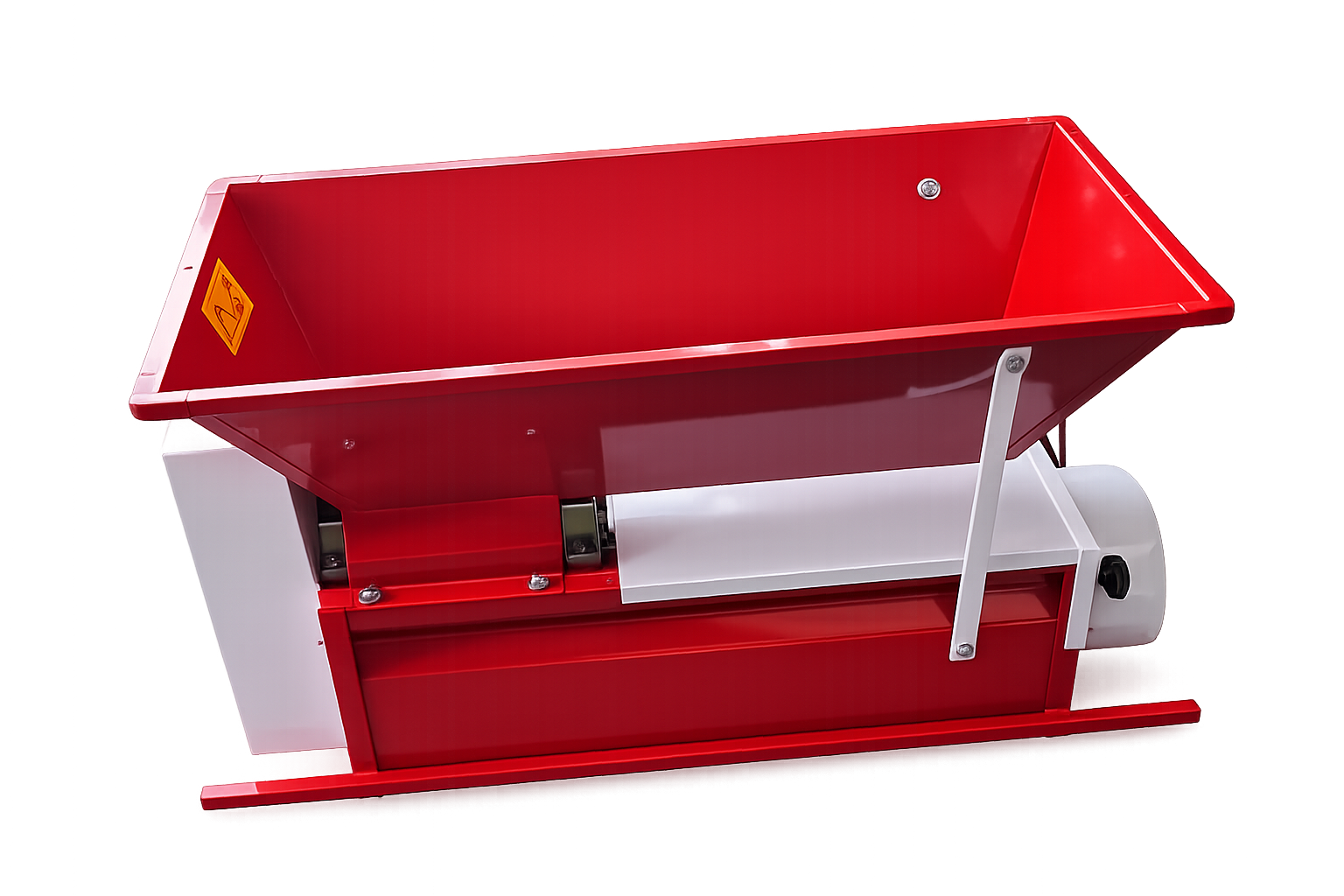

The Model 191 electric grape destemmer-crusher is designed for the fast and efficient processing of grapes prior to fermentation. It is an ideal solution for home winemakers, small producers and wineries looking for a robust, reliable machine with a high processing capacity.
This model represents Enorom's current alternative to the well-known DMC grape destemmer-crusher, selected for its robust construction, all-metal components and superior manufacturing quality.
Manufactured in Italy by Fratelli Baesso, the Model 191 features a heavy-duty construction made almost entirely of steel. The hopper and feed auger are manufactured from electrostatically powder-coated steel, while the separating drum is made of food-grade stainless steel, ensuring excellent hygiene standards and long service life.

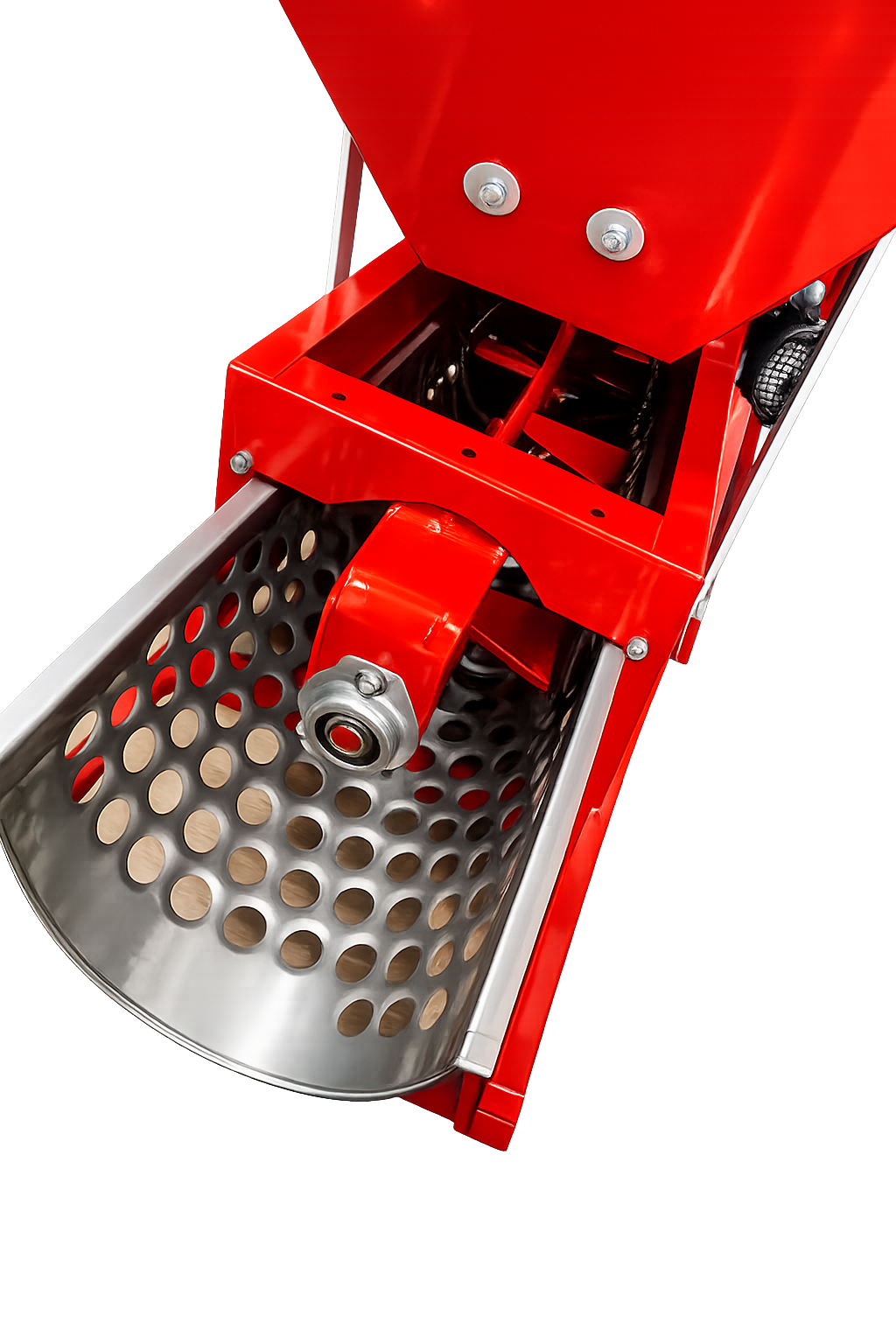

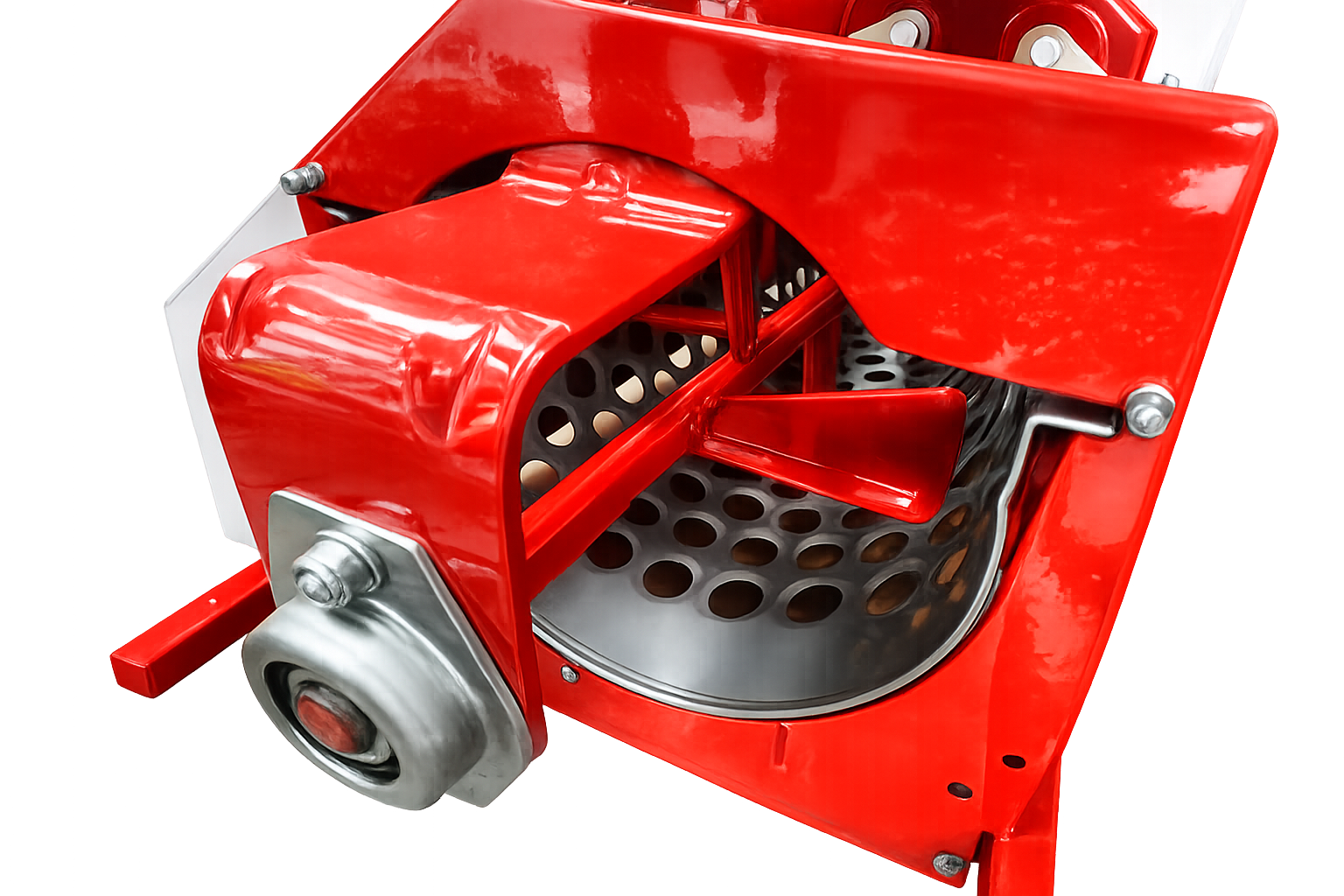

The feed auger transports the grapes evenly towards the crushing rollers, while its paddles ensure a continuous and uniform product flow. After crushing, the stainless steel separating drum efficiently separates the berries and juice from the stems, which are automatically discharged on the side opposite the motor, ensuring continuous and efficient operation.
The aluminum crushing rollers feature an adjustable gap, allowing the crushing intensity to be precisely adapted to different grape varieties and ripeness levels.
Key Benefits
- Destemming and crushing performed in a single operation.
- Continuous feeding through a paddle-equipped feed auger.
- Food-grade stainless steel separating drum for superior hygiene.
- Adjustable aluminum crushing rollers.
- Heavy-duty construction with all-metal components.
- High reliability and long service life.
- Easy cleaning and maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum processing capacity | 1,500 kg/h |
| Motor | 220 V, 1 HP |
| Hopper dimensions | 900 × 500 mm |
| Crushing rollers | Aluminum, Ø 220 mm, adjustable gap |
| Separating drum | Food-grade stainless steel |
| Drum perforation diameter | 22 mm |
| Hopper material | Electrostatically powder-coated steel |
| Feed auger material | Electrostatically powder-coated steel |
Construction Features
The Model 191 incorporates a number of design solutions that provide outstanding durability and operational reliability, including:

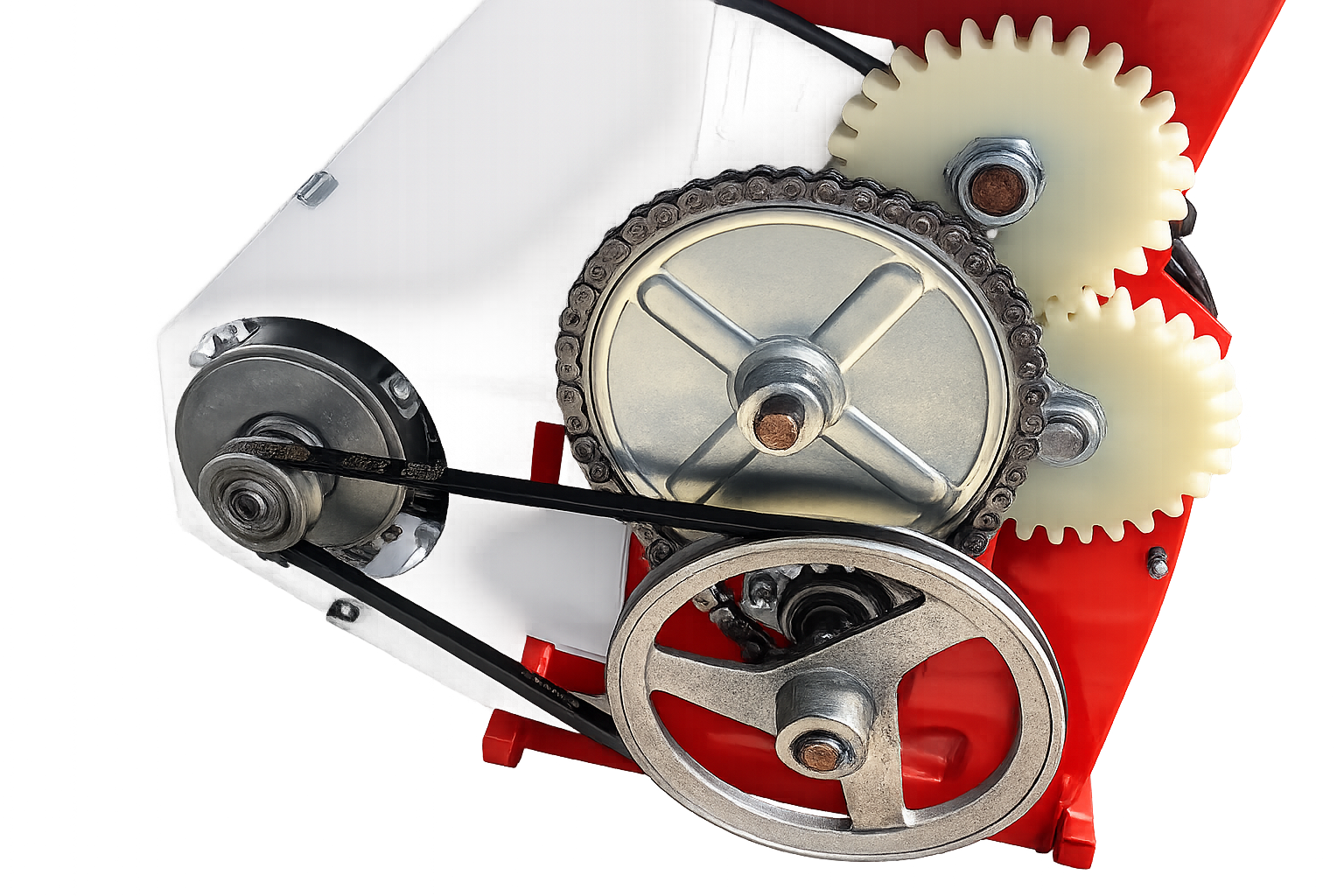

- Metal protective covers for the transmission system.
- Metal stem discharge outlet.
- Metal drive gear.
- Metal pulley.
- Heavy-duty steel construction designed for intensive, long-term use.
Manufacturer: Fratelli Baesso – Italy
