The CIAO – XP 6/6/1 – ka606S0 bottle rinsing monoblock is the smallest in the range of automatic filling lines, with a maximum production of 600 liters/hour.
Rinsing device characteristics:
- It works with a single clean water treatment (sterile double water treatment + nitrogen injection is optional, with extra cost).
- It is provided with fixed nozzle for spreading water into the bottle.

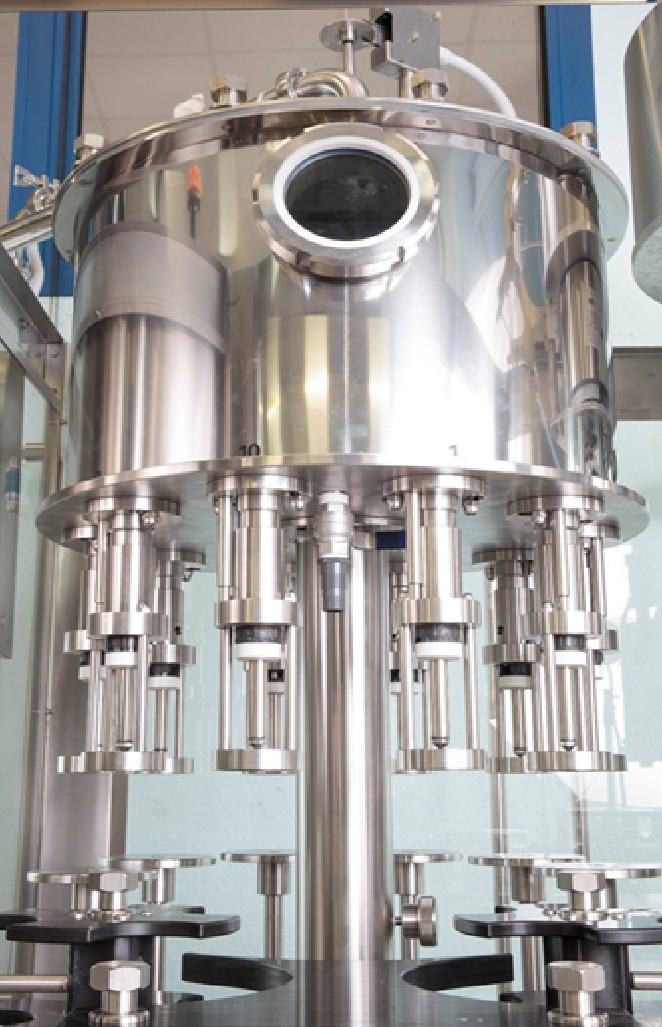

Characteristics of the filling device:
- 6 mouth filling device.
- Gravity operation.
- Pneumatic cylinders with air pressure raising and mechanical lowering of the platens through the cam system.
- The cylinder circuit is consumption-free, with air recovery.
- Standard valves ø 15 mm.
- The level of detection of the wine in the filled bottle, with electromagnetic probes.
- Maximum bottle size to use: ø 118 mm for cylindrical glass.

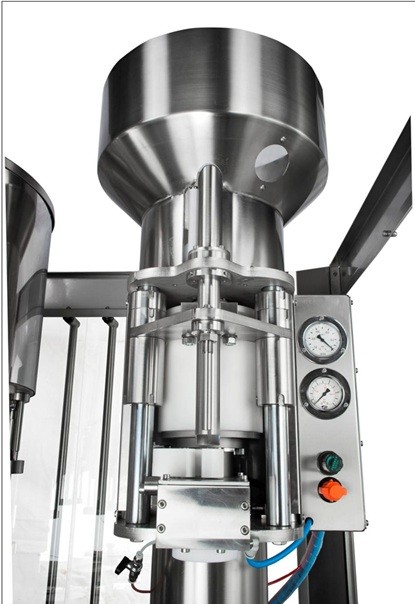

Doping device characteristics:
- Doping device for cork plugs, microgranulate or agglomerated, ALEXA S2.0 cylindrical.
- A plug head with clamping jaws suitable for cork or synthetic plugs.
- Dimensions of plugs that can be used: ø 22 - ø 28 / H 38 – 50 mm.
- Inert gas injection device in standard series equipment.
- Vacuum doping kit, optional, extra charge.
- Ø Anchor closure adjustment system with eccentric pins.
- Constructed entirely of stainless steel, stainless steel ends, bronze trolleys and dowels tempered and ground with N690 steel.
- Simple closure adjustment of eccentric pin compressor blocks.
- The high-capacity tank with selection disc for plugs, of new design.
- Plug pushing plunger mounted on self-lubricating bushings and rods made of rectified chrome-plated steel, without any clearance, which greatly limits wear.
KUV1 is the innovative kit for vacuum doping patented by the BORELLI Group. Exhausting the air from the bottle after filling is today a necessity felt by all as indispensable. We offer a high-tech solution, surprising in terms of efficiency, durability, silence and simplicity.
The KUV1 kit does not use vacuum pumps but compressed air, exploiting the Venturi tube principle. With the help of this system we can guarantee constant vacuum levels, which are not affected by the performance of the vacuum pump. Moreover, the kit does not require any maintenance, which is absolutely necessary for common vacuum pumps, and it is not subject to any type of wear, having constant performance over time, impeccable cleanliness and hygiene.
Manufacturer: Borelli Group – Italy
